No more struggling with stator or armature windings that cannot be tamped with conventional tamping tools.

  • Jaws are machined from steel bar stock instead of easily bent sheet metal
  • Jaws are easily changed with screws
  • No tool like this is on the market!
  • Designed to tamp the windings in long bore or small bore stators where restricted space does not allow the use of conventional tamping tools and hammers.

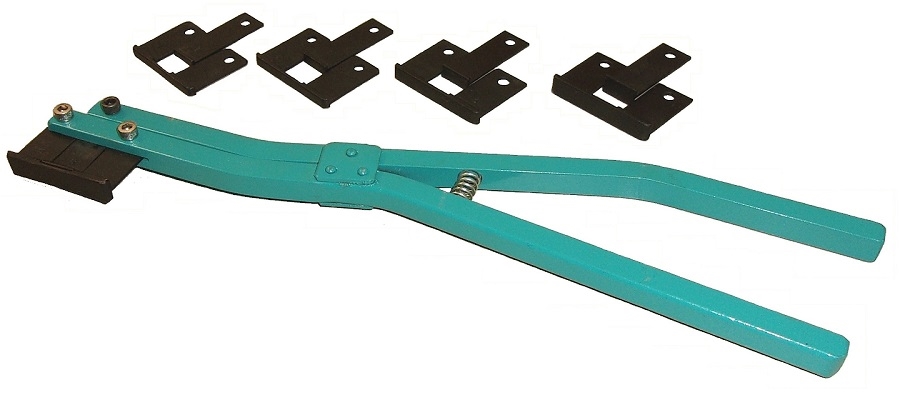

A set consists of the coil tamping pliers (overall length 11") and 5 different jaws machined from steel bar stock. The jaws are easily changed to fit your special needs and may be purchased as a set or individually.







Model # Description Price- US. Dollars Packing & Handling Weight
Domestic  Export
LA-TP-J-1-5 Set of tamping pliers & five jaw sizes $495.00 $10.00 $10.00 1Lbs
LA-TP Tamping pliers $175.00 $10.00 $10.00 1Lbs
LA-TP-JAWS Set of jaw -Five Sizes $337.50 $10.00 $10.00 1Lbs
LA-TPJ-1  #1 Jaws - 5/32" width (4 mm) $75.00 $10.00 $10.00 1Lbs
LA-TPJ-2 #2 Jaws - 3/16" width (4.8 mm) $75.00 $10.00 $10.00 1Lbs
LA-TPJ-3 #3 Jaws - 1/4" width (6.4 mm) $75.00 $10.00 $10.00 1Lbs
LA-TPJ-4 #4 Jaws - 5/16" width (7.9 mm) $75.00 $10.00 $10.00 1Lbs
LA-TPJ-5 #5 Jaws - 3/8" width (9.5 mm) $75.00 $10.00 $10.00 1Lbs
