At Laycock, we do our best to keep up with the trends in the industry and in ways to make winding easier. The results of this commitment are now available to you!

Laycock Systems produces a complete line of single and three phase random wound electric motor winding heads.All winding heads are coated with Polyurethane for smoother operation and less wear and abrasion. Try this remarkable concentric coil winder product line today!

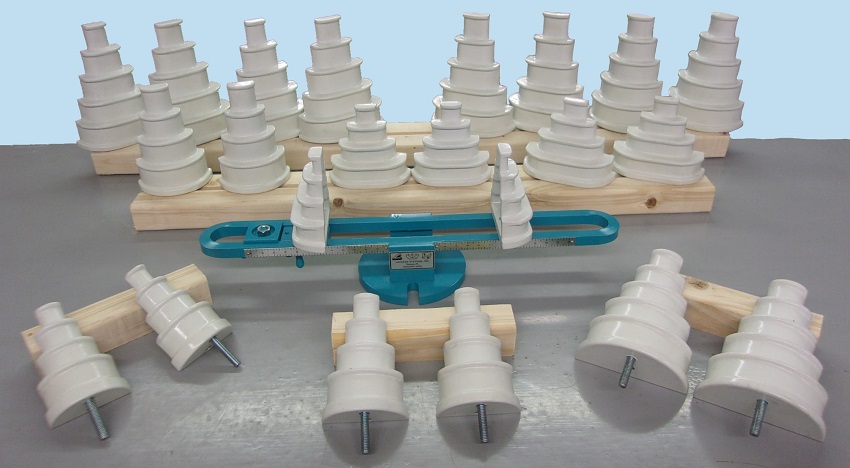

Concentric Winding Heads



  The only Winding Heads and Holder with an Instant Coil Release available anywhere!

Will wind practically any single phase stator for any RPM

Eleven Sets of Heads #1 through #11 -  ADJUSTMENT NEEDED FOR LENGTH ONLY!

These Winding Heads are the result of years of development by small motor specialists. Profit from their experience! No lost time!  No guess work!

Do You Wish To Earn More Money On Your Single Phase Stator Winding?

No need to measure and try!  No guessing of what steps to use!  Just select the winding form size with a step nearest in width to first span in the stator, making sure it has enough steps to wind a complete group, and make a sizing loop around the first insulated span in the stator.  Position winding forms on the holder to pull the sizing loop tight and wind the coils.

Nothing Could Be Simpler!

The winding forms mount on our 19" (48.3 cm) or 25" (63.5 cm) holders with an instant coil release that moves one winding form 2" (50.8 mm) closer to the other, and are marked in inches for rapid adjustment. Our holders have a base adaptable to any known winding machine on the market.




Three New Concentric Heads

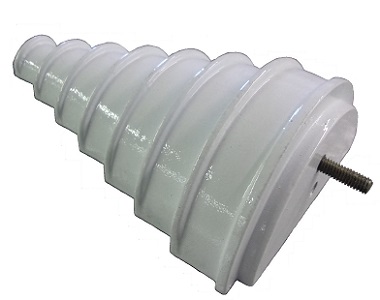

Our # 14 winding head is a large pair of seven-step round top heads to wind stators with a long bore and wide span for 3,600 RPM (3000 at 50 Hz) motors, made for use on jet pumps or other similar motors.

It measures 1 5/16" (33.3 mm) across the first step and 5 1/8" (130.2 mm) across the largest step.
Our # 15 winding form is a large pair of eight-step flat top heads made to wind the usual types of single phase size  2, 3, 5, 7 1/2; and 10 H.P. (KW) Motors. It makes a close fitting coil and is an important addition to our other winding forms because it will allow more coils per group and larger sized coils.

It measures 2" (5.08 cm) across the first step and 7 11/16" (195.3 mm) across the largest step.

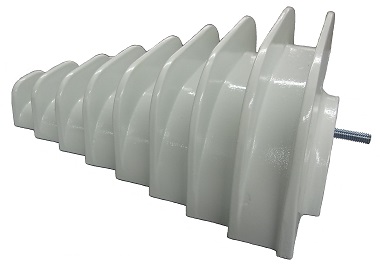

Our # 15-HR High Rib 1" (2.5 cm) Deep winding form is a large pair of eight-step flat top Concentric heads which allows winding single phase motors and large concentric 3 phase motors.

It measures 2" (5.08 cm) across the first step, 2 7/8" (7.3 cm) across the second step, 3 3/4 (9.05 cm) across the third step. 4 3/8" (11.1 cm) across the forth step, 5 1/4" (13 cm) across the fifth step, 6" (15.2 cm) across the sixth, 6 7/8" (17.5 cm) across the seventh step and 7 11/16" (19.5 cm) across the largest step. The slot widths are 1" (2.5 cm) from one rib to the next rib.




LA-115 HR step height, first step 3/4" (1.9 cm), second step height 1 1/8" (2.9 cm) , third step height 1 7/16"(3.8 cm) , forth height 1 7/8" (4.8 cm), fifth step height 2 1/4"(5.7 cm) , sixth height is 2 5/8" (6.7 cm), seventh step 3" (7.6 cm) and eighth step height 3 1/2" (8.9 cm).

All forms will mount on either our 19" (48.3 cm) or 25" (63.5 cm) Laycock holders and coil releases.



Model # Description Price- US. Dollars Packing & Handling Weight
Domestic  Export
LA-101   #1    4- Step round top (7/8" - 2 9/16") $140.00 $10.00 $10.00 1Lbs
LA-102   #2    4- Step round top (1 1/16" - 2 3/4") $140.00 $10.00 $10.00 2Lbs
LA-103   #3    5- Step round top  (1 5/16" - 4") $152.00 $10.00 $10.00 2Lbs
LA-104   #4    4- Step round top  (1 5/16" - 3 7/16") $140.00 $10.00 $10.00 2Lbs
LA-105   #5    5-Step round top (1 9/16" - 4 1/2") $160.00 $10.00 $10.00 3Lbs
LA-106   #6    5-Step flat top (1 1/8" - 4 5/8") $160.00 $10.00 $10.00 3Lbs
LA-107   #7    5-Step flat top (1 1/2" - 4 15/16") $160.00 $10.00 $10.00 3Lbs
LA-108   # 8   5-Step flat top (1 1/2" - 5 3/16") $160.00 $10.00 $10.00 3Lbs
LA-109   # 9   4-Step flat top ( 1 5/16" - 4 11/16") $140.00 $10.00 $10.00 2Lbs
LA-110   # 10 4-Step flat top (1 1/16" - 4") $140.00 $10.00 $10.00 2Lbs
LA-111   # 11 4-Step flat top (1 1/16" - 3 1/4") $140.00 $10.00 $10.00 2Lbs
LA-114    #14 7-Step round top (1 5/16" - 5 1/8") $250.00 $10.00 $10.00 4Lbs
LA-115    #15 8-Step flat top (2 11/16" - 7 11/16") *avaliable until inventory depleted*. $286.00 $10.00 $10.00 9Lbs
LA-115-HR    #15 High rib 8-Step flat top (2" - 7 11/16") $300.00 $10.00 $10.00 -
LA-100   Set of #1 - #11 Concentric winding heads. $1,506.00 $10.00 $10.00 25Lbs
LA-100-HR-19   Set of #1 - #11 concentric winding heads, standard 19" long holder & instant coil release. $1,940.00 $20.00 $20.00 34Lbs
LA-100-HR-25  Set of #1 - #11 concentric winding heads, special 25" long holder & instant coil release. $1,965.00 $20.00 $20.00 35Lbs
