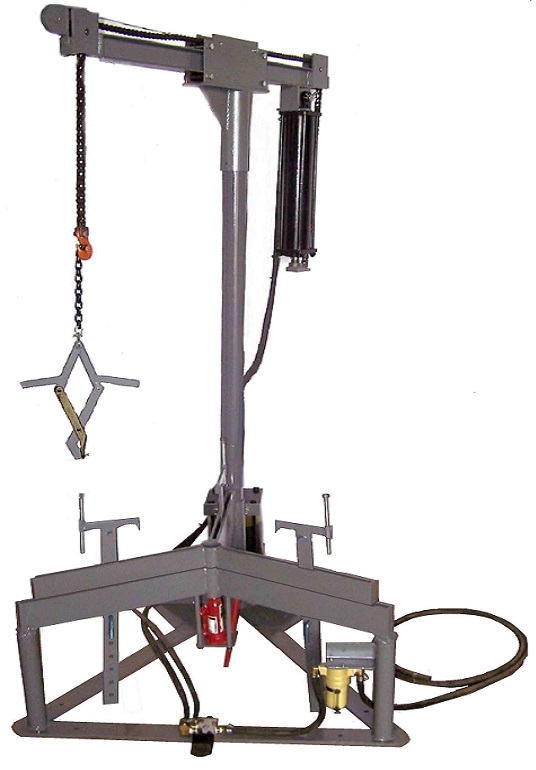

Strip energy efficient motors without damage to core or aluminum housings. Boom slides and pivots. Smooth powerful 1800 lb pull @ 150 PSI. Pulls coils 20" long, 3" to 38" Diameter stators. New Air Hydraulic operation.



Specifications & Parts



Click for Footprint

Model # Description Price- US. Dollars Packing & Handling Weight
Domestic  Export
SW-1000AH-20 Air Hydraulic 20 Inch Stroke Coil Puller $12,525.00 $500 $550 Lbs



The stator may be preheated in a oven or a gas burner element may be added to the center of the clamping base to soften the varnish and prevent damage to the stator. Caution: Do Not Overheat Stator, as this can damage the Core Laminations.

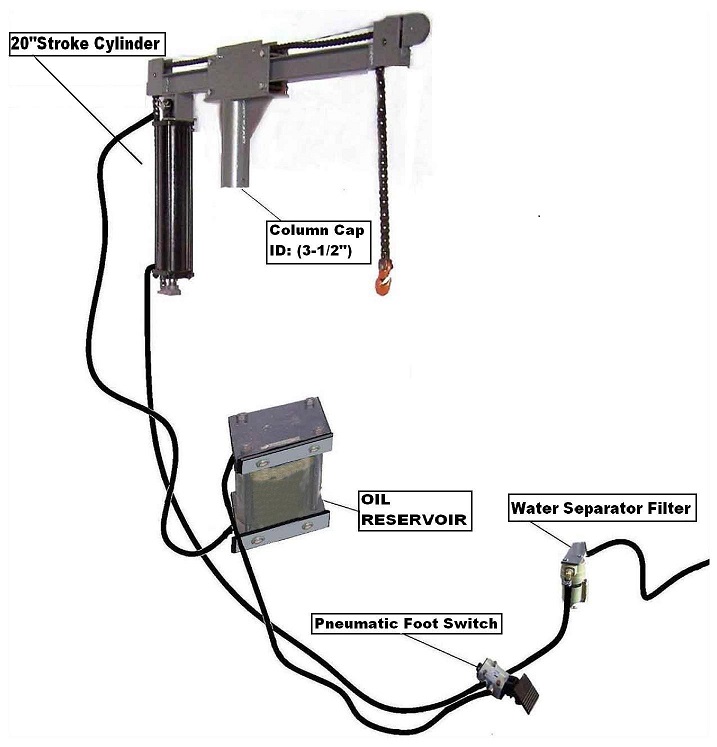

Air Over Hydraulic Retrofit Kit



Model # Description Price- US. Dollars Packing & Handling Weight
Domestic  Export
SW-1000AH-20 RETRO Complete Air Over Hydraulic Retrofit Kit $7,250.00 $375.00 $425.00 LBS

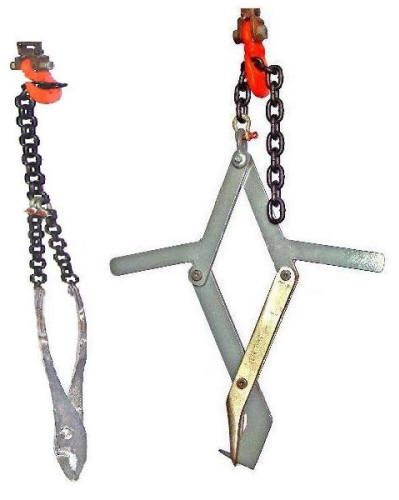

Pliers and Chains

Model # Description Price- US. Dollars Packing & Handling Weight
Domestic  Export
SW-1052 Small pliers and chain $173.10 $10.00 $10.00 Lbs
SW-1065 Large pliers and chain $611.60 $25.00 $25.00 Lbs
