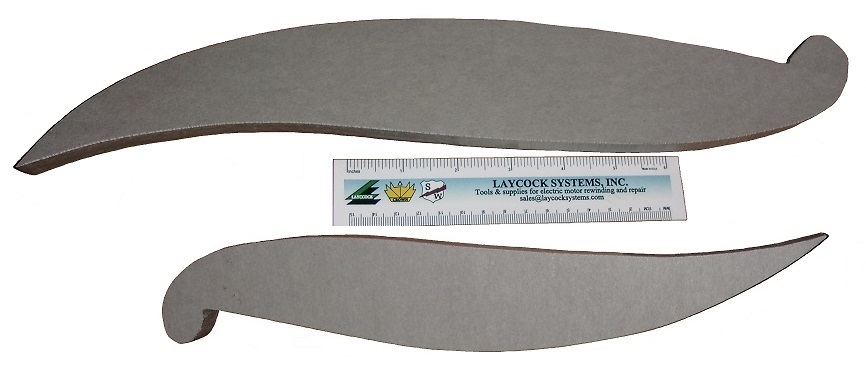

Winding Horns



  This handy tool is carefully designed with the size and shape most winders need.  Our winding horns are great for shaping end turns on stator windings and both large and small armature windings, without scuffing the magnet wire film insulation.
The winding horn Model: LA-HORN is 12" (304.8 mm) long,  and 1/2" (12.7 mm) thick.
The winding horn Model: LA-LG-HORN is 14" (355.6 mm) long,  and 1/2" (12.7 mm) thick. Both of them are made of highest quality bone grade fiber.

Order one today for every winder in your shop!

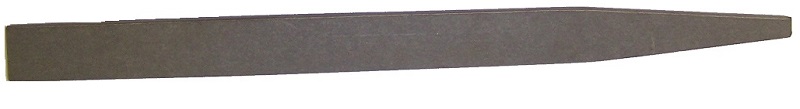

Winding Paddle

  The Paddles are made from non conductive material, and have tapered ends, can be used for forming and positioning fine magnet wire where fingers can’t reach, also used for prying and holding open contacts.

The Paddles are 14" (355.6 mm) long, made of quality bone grade fiber, and 1/2" (12.7 mm) thick.


Model # Description Price- US. Dollars Packing & Handling Weight
Domestic  Export
  LA-HORN Winding Horn.              Pkg Qty:3 pcs. $45.95 $10.00 $10.00 2Lbs
  LA-LG-HORN Large Winding Horn.   Pkg Qty:2 pcs. $45.95 $10.00 $10.00 2Lbs
  LA-WP Winding Paddle.          Pkg Qty:3 pcs $45.95 $10.00 $10.00 2Lbs
  LA-WHP One of each (Winding Horn, Large Horn  and Paddle. Pkg Qty:3 pcs $55.95 $10.00 $10.00 2Lbs
