Model: 2105



  This dual-purpose tool holds any fractional or small integral horsepower armature or stator, holds centered or UN-centered shafts, and clamps stators through dogs as illustrated. This armature and stator holder rotates both horizontally and vertically and may be locked in any position. Holds work in most convenient position for winding, soldering, bonding, etc.

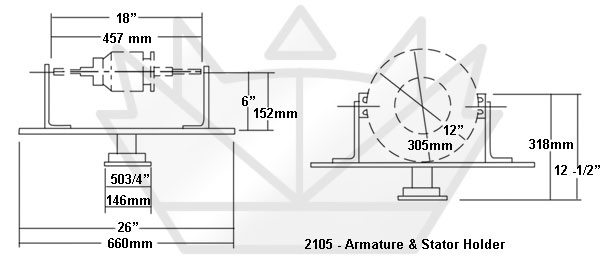

Dimensions:
12 1/2" total height with adapters, length 26".
Capacity: Maximum armature length 18"; Maximum diameter 12" .





Specifications



Model # Description Price- US. Dollars Packing & Handling Weight
Domestic  Export
2105  Armature & Stator Holder $1,000.00 $10.00 $10.00 19 lb.
