Model: 2505 & 2506

Bench Growlers

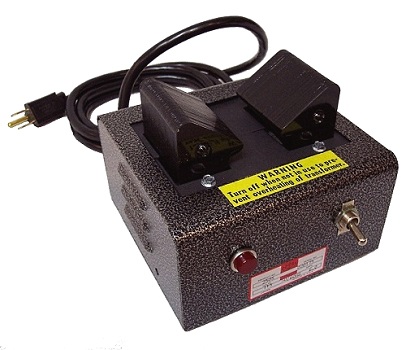

This low price unit will test armatures from 1/2" to 8" in diameter. The Model 2505 Growler can be used to test for shorts and open circuits. This handy tool will magnetize or de-magnetize tools or other objects. This model provides service for all-around work.


Manual & Specifications

Quick Operation Procedure



Model # Description Price- US. Dollars Packing & Handling Weight
Domestic  Export
2505    115V, 50-60 HZ, Bench Growler $940.00 $10.00 $10.00 13 lb.
2506   230V, 50-60 HZ, Bench Growler $980.00 $10.00 $10.00 13 lb.


* 230V units are shipped without the power plug.



Model: 2501 & 2503

Meter Growlers

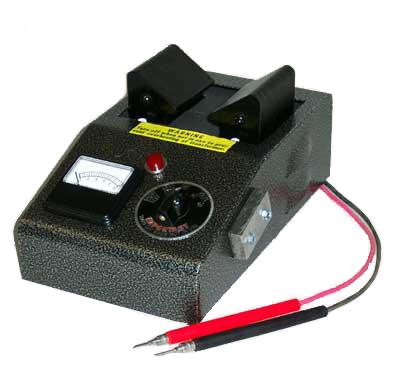

  A quality instrument for locating shorts, open circuits and grounds in armatures from 1/2" to 8" in diameter. The unit has a built-in meter for checking reverse coils, defective windings, etc. Shipped with iron-insert block for testing smaller armatures down to 1/2" in diameter.

The "Short" Test:
Like the model 2530 Growler, the "feeler" method is used for short circuit testing.
The "Open" test:
Broken windings may be determined by placing the armature on the pole pieces and touching the test prods to adjacent commutator bars or coil ends.
The "Ground"
Test: One test prod is held to the commutator bar and the other to the shaft or metal core. A grounded coil or commutator bar will be indicated by a glow of the lamp. Demagnetizing: These growlers may also be used to magnetize or de-magnetize tools or other objects.

Shipped with iron-insert block for testing smaller armatures down to 1/2" in diameter.


Manual &  Specifications

Quick Operation Procedure

Model # Description Price- US. Dollars Packing & Handling Weight
Domestic  Export
2501  115V, 50-60 HZ, Meter Growler. $1,145.00 $10.00 $10.00 15 lb.
2503  230V, 50-60 HZ, Meter Growler. $1,165.00 $10.00 $10.00 15 lb.

* 230V units are shipped without the power plug.



Model: 2530 & 2533

Internal/External Growlers

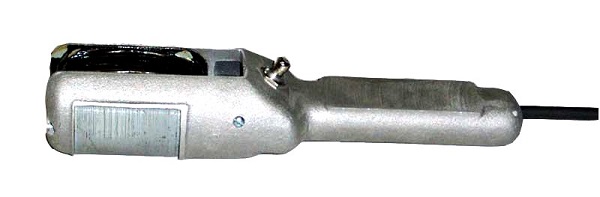

The Model 2530 Growler is designed to test for "short" circuits in armatures from 6" - 12" in diameter, and stators from 2 1/2" to 12". It is easy to handle and highly sensitive.
"Short" testing
is done by the "feeler" method using a hacksaw blade or thin strip of metal. The growler is placed on the stator iron or on the armature and slowly rotated by hand with the "feeler" held opposite the slots in the armature or stator. If a short exists the "feeler" sticks or vibrates. This action is quite evident and positive.



 Manual & Specifications

Quick Operation Procedure



Model # Description Price- US. Dollars Packing & Handling Weight
Domestic  Export
2530   115V, 50-60 HZ, Hand Growler. $985.00 $10.00 $10.00 9 lb.
2533   230V, 50-60 HZ, Hand Growler. $1,095.00 $10.00 $10.00 9 lb.

* 230V units are shipped without the power plug.
